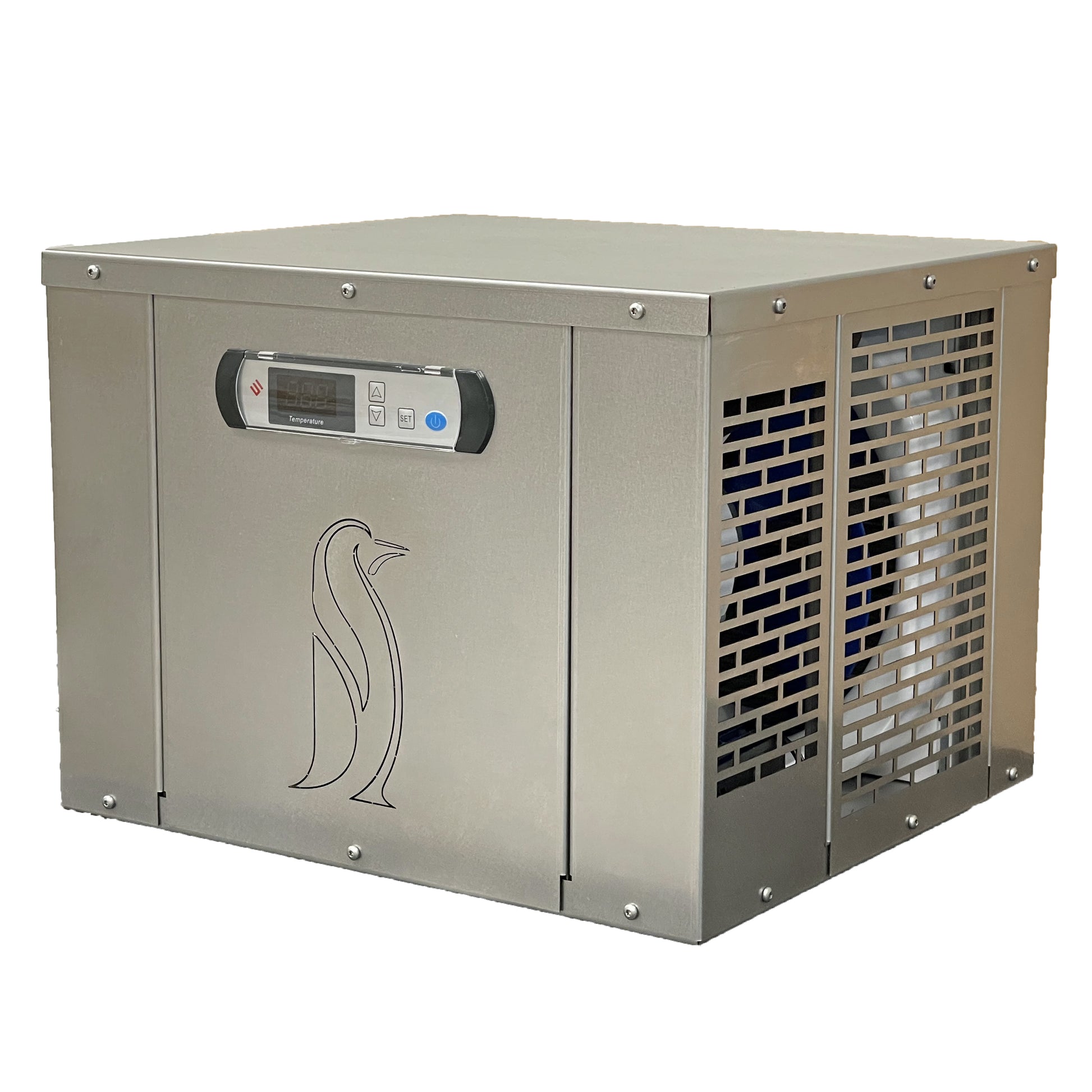

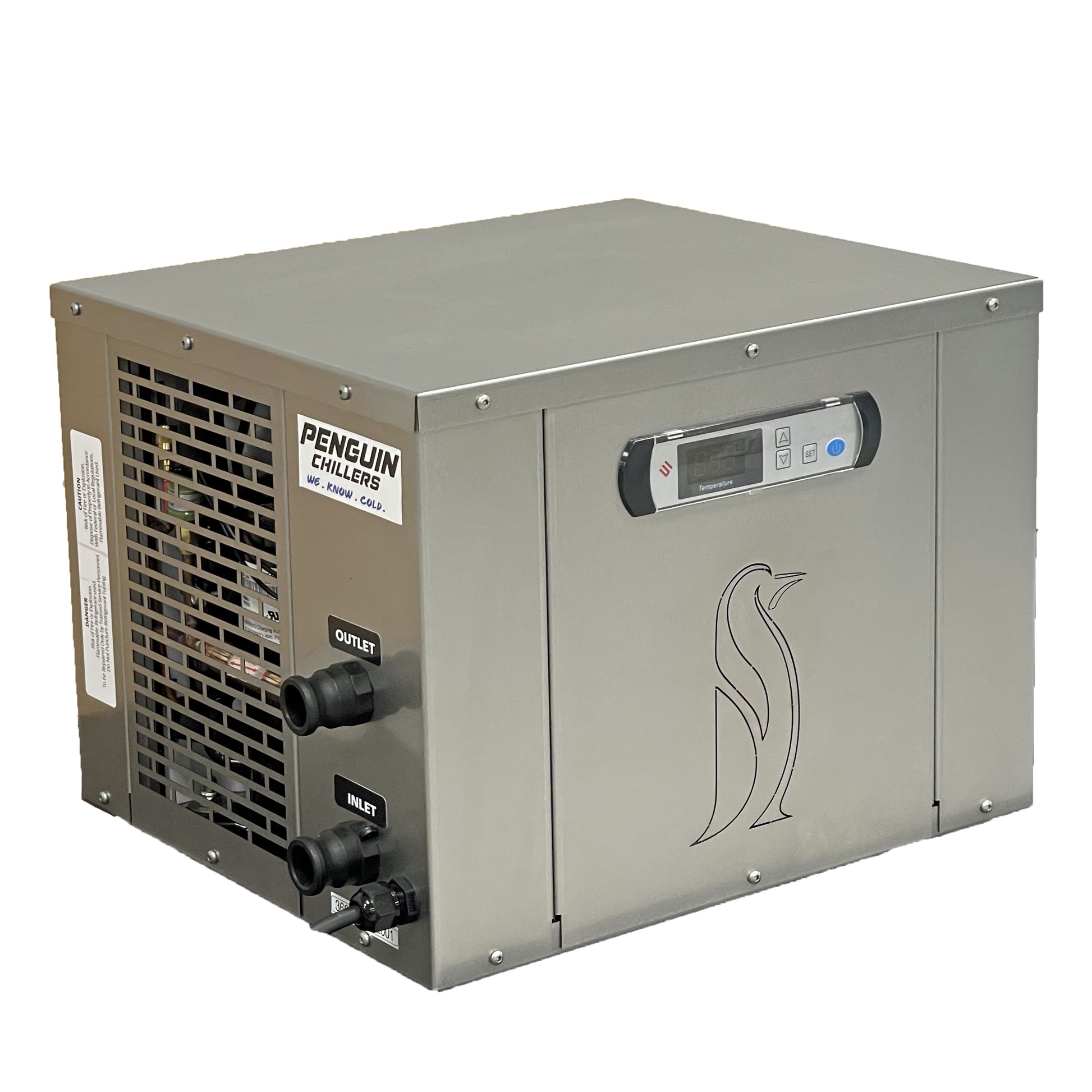

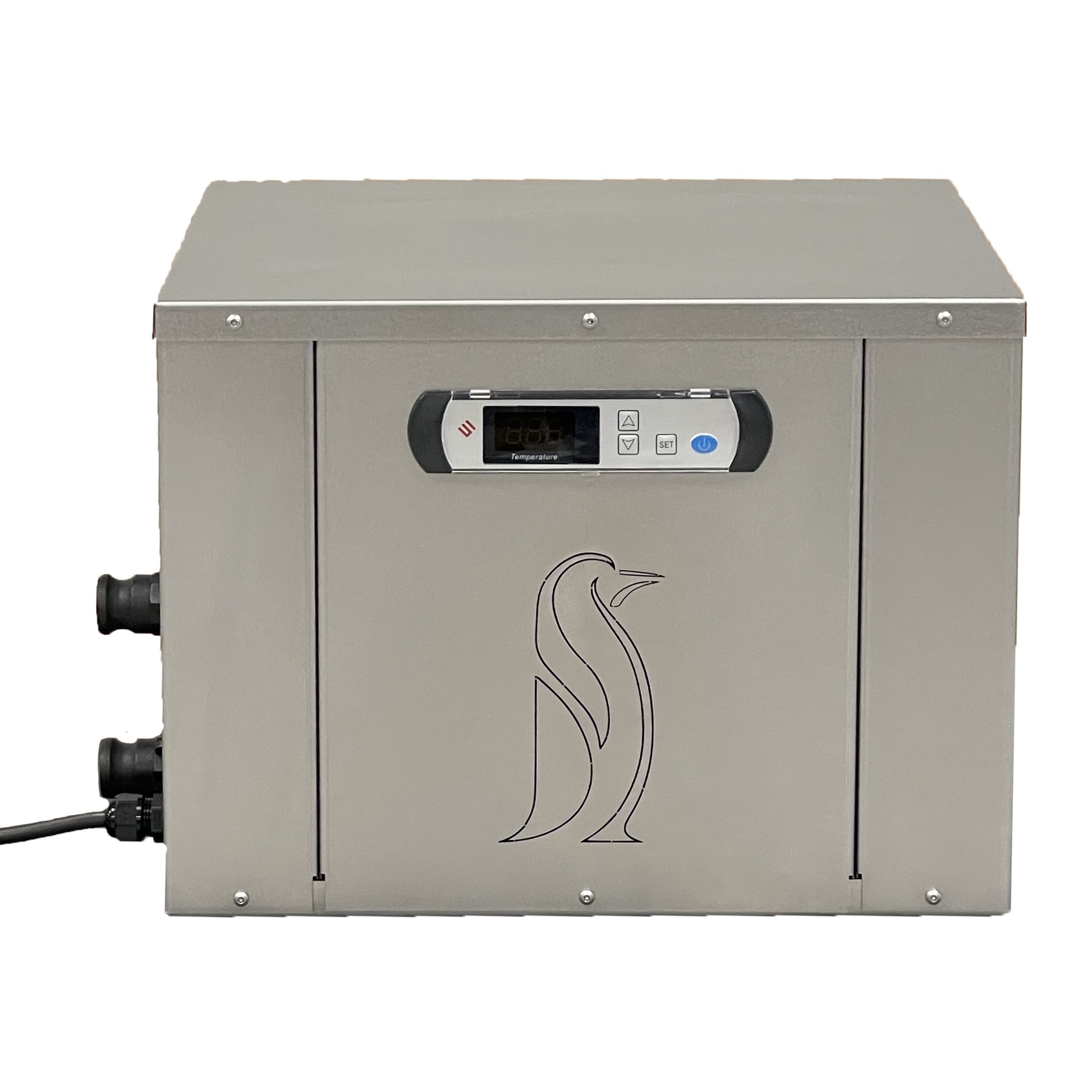

Penguin Chillers Cold Therapy Chiller

Description

Our Cold Therapy Chiller is designed to make cold plunging easier, more consistent, and far less dependent on ice. With 7,500 BTU/hr of cooling capacity, a built-in pump, and quick connect fittings, this system helps simplify cold therapy so your plunge is ready when you are.

Free Shipping (Continental 48 States)

Estimated Lead Time: 2–3 Business Days

Specifications

Cooling Capacity: 7,500 BTU/hr

Horsepower: 3/4 HP

Set Point Range: 37F – 100F

Inlet/Outlet: 3/4 in Camlocks

Pump: Built-In Pump

Filter System: 150 micron washable / reusable filter (Optional)

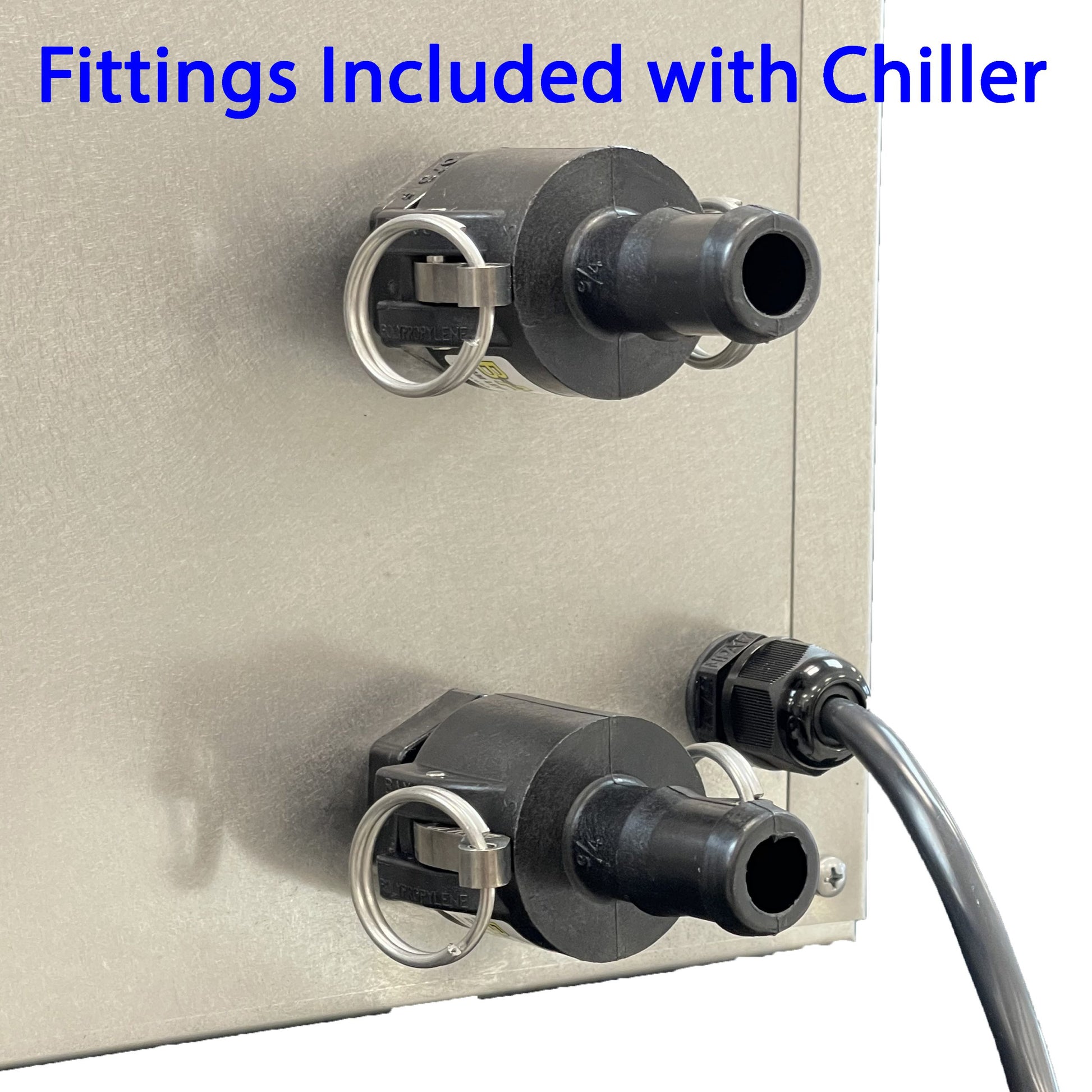

Quick Connect Fittings: Included

Width: 17″

Depth: 15″

Height: 13″

Weight: 49 lbs

Sound Rating: 65 dBA

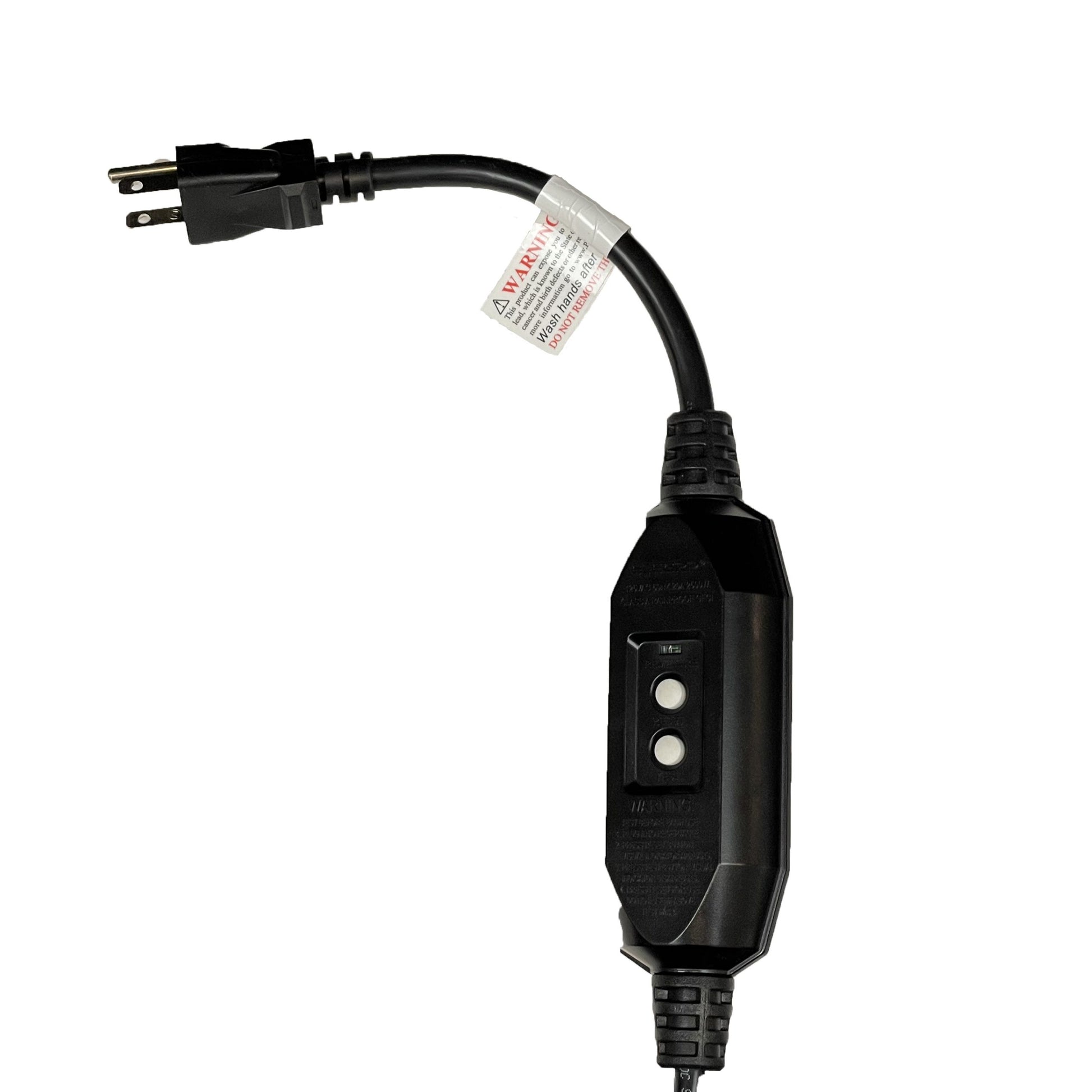

Cord Length: 6 ft

Voltage: 110–120V / 1ph

Watts: 450w

Amps: 3.9A

Phase: Single Phase

What’s Included

Cold Therapy Chiller with built-in pump

Quick connect fittings for tubing installation

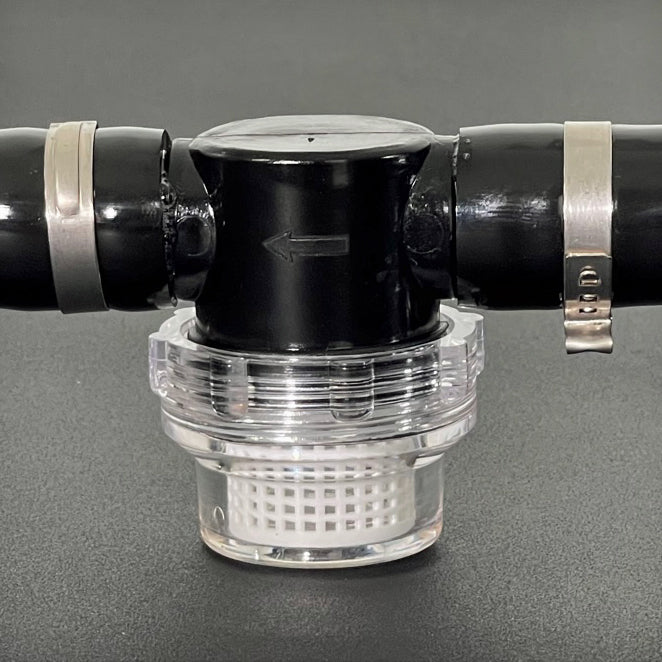

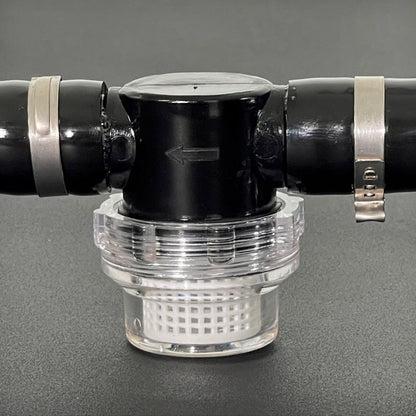

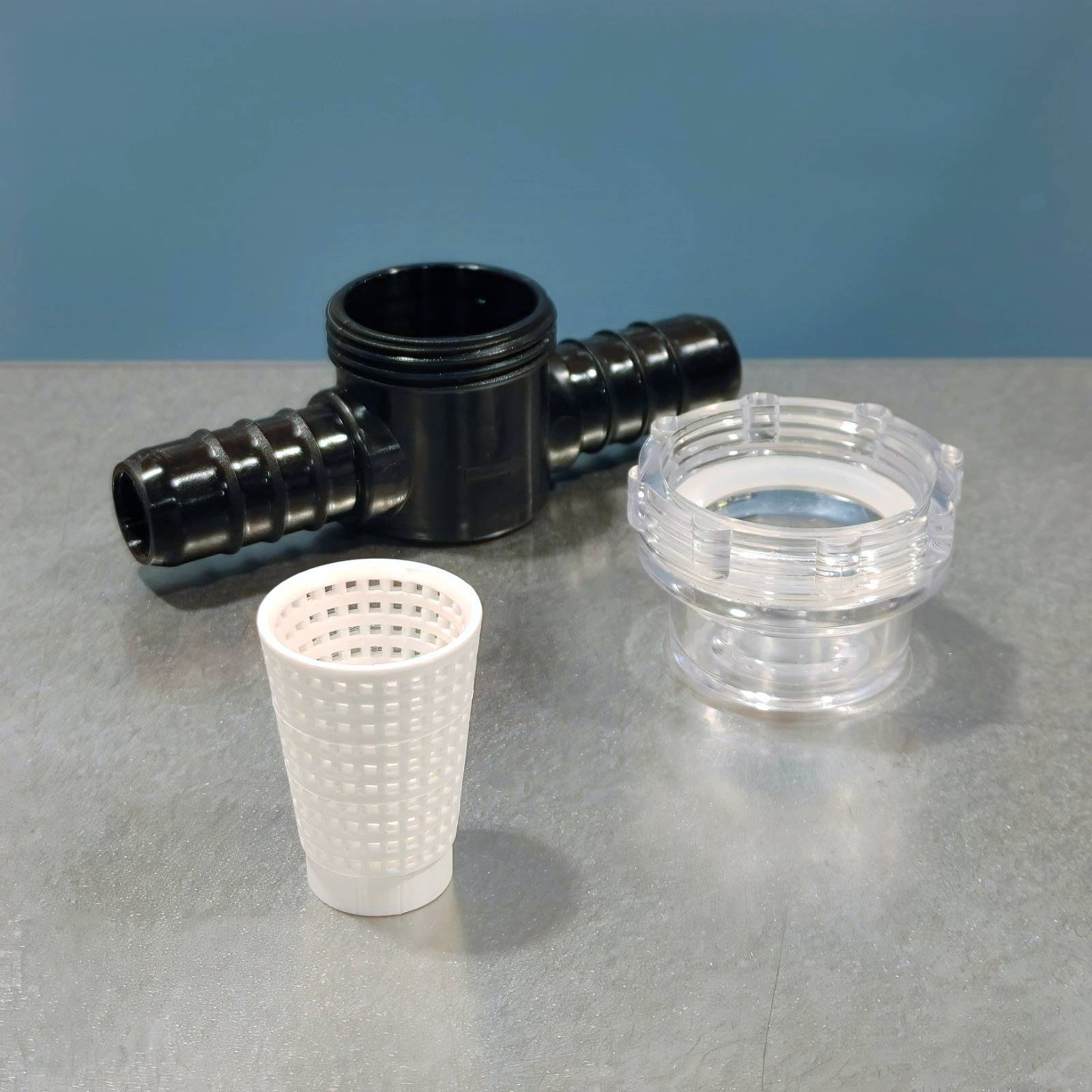

Inline screen for filtering debris

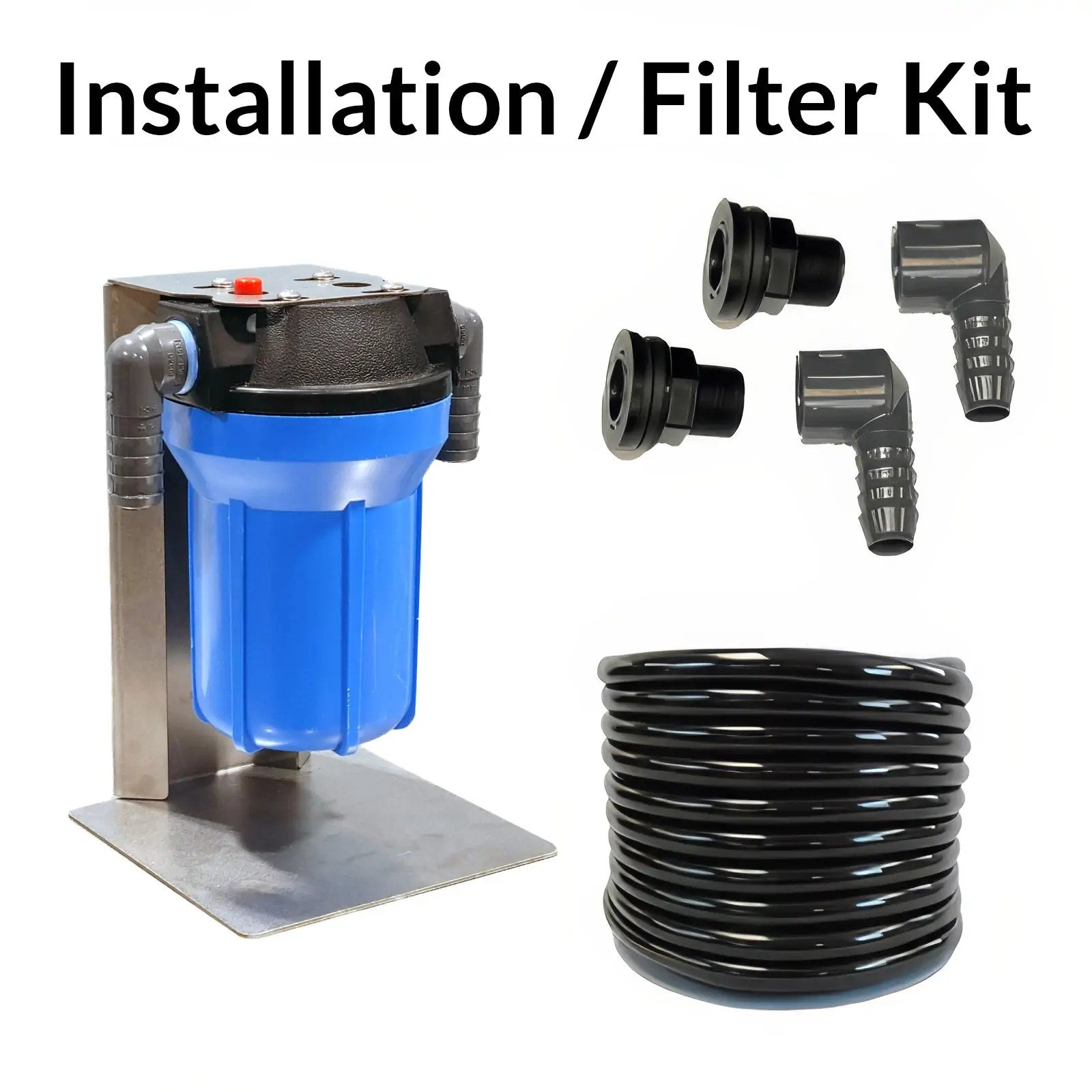

*Tubing is sold separately unless included through the optional install / filter kit selection.

Washable and Reusable 150-micron filter

2 x 6′ lengths of 3/4″ ID black vinyl tubing

2 x bulkheads and hose clamps for tank connection

2 x Barbed Elbow Fittings to connect to bulkheads and tubing

*The bulkheads in this kit will only work if the wall of the tub is 1/4″ or less.

Manufacturer Guidelines

Place the setup in an area that can withstand wetness, moisture, and condensation so you do not risk water damage.

Ambient temperatures, insulation, and sun exposure will affect performance. Reducing external heat load will help maintain colder water temperatures more consistently.

The pump is not self-priming. Your setup needs to gravity prime to the pump for proper operation.

Place the chiller within 3′ of the drain of your tub whenever possible.

The bottom of the chiller should be at the same height or lower than the bottom of your tub.

Do not elevate the chiller above the tub.

The Cold Therapy Chiller is designed for outdoor use in all weather conditions except freezing temperatures.

Disconnect and drain the chiller completely if ambient temperatures drop to freezing or below to prevent damage.

The pump should run continuously, and the filter should be kept clean for proper temperature monitoring and operation.

Using a timer is not recommended, as frequent power cycling may increase maintenance and wear on the pump over time.
