Penguin Chillers Barrel Chiller Cold Therapy Package

Description

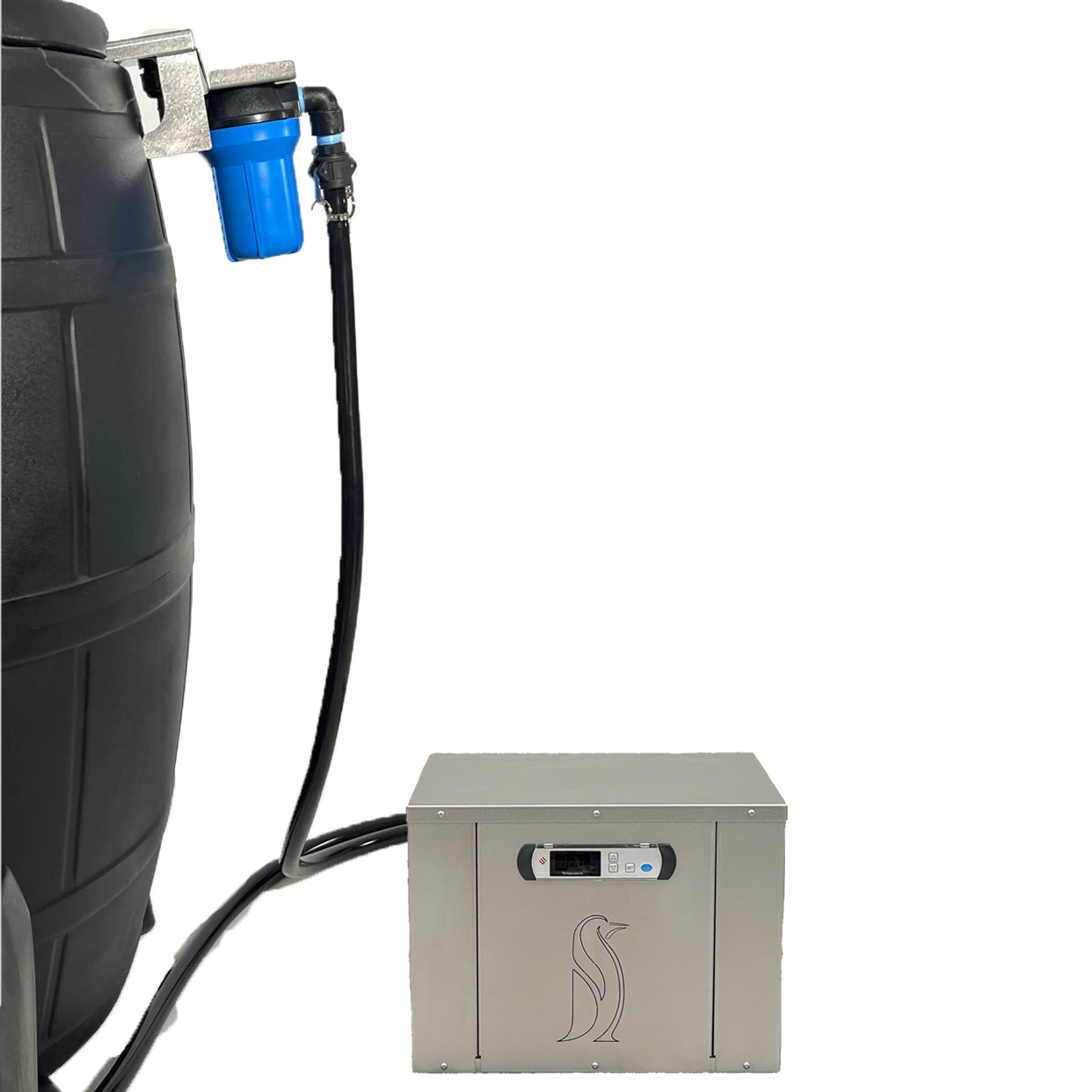

Our Barrel Chiller Cold Therapy Package is designed to make cold plunging easier and more consistent. This complete package is built for customers who want to use their own compatible Ice Barrel™ setup while getting the convenience of a Penguin Chillers cooling system.

With 7,500 BTU/hr of cooling capacity, a built-in pump, and quick connect fittings, the included Cold Therapy Chiller helps simplify cold therapy so your plunge is ready when you are without the need for ice runs. This package includes the barrel attachment components, hoses, and fittings needed to get started, so you have the core hardware needed to begin using the system with your compatible barrel.

Please note: The Ice Barrel™ itself is not included. Customers must choose between the 300 / 500 Kit or the 400 Kit depending on their setup.

FREE SHIPPING (Continental 48 States)

Estimated Lead Time: 2–3 Business Days

Specifications

Tub

Tub Included: No

Tub Type: Barrel

Compatible Setup: Customer-supplied compatible Ice Barrel™

Included Chiller

Cooling Capacity: 7,500 BTU/hr

Horsepower: 3/4 HP

Set Point Range: 37F – 100F

Inlet/Outlet: 3/4 in Camlocks

Pump: Built-In Pump

Filter System: 150 micron washable / reusable filter

Quick Connect Fittings: Included

Dimensions

Width: 17″

Depth: 15″

Height: 13″

Weight: 49 lbs

Sound Rating: 65 dBA

Power

Cord Length: 6 ft

Voltage: 110–120V / 1ph

Watts: 450w

Amps: 3.9A

Phase: Single Phase

What’s Included/Kit options

What’s Included

Cold Therapy Chiller with built-in pump

150 micron washable / reusable filter

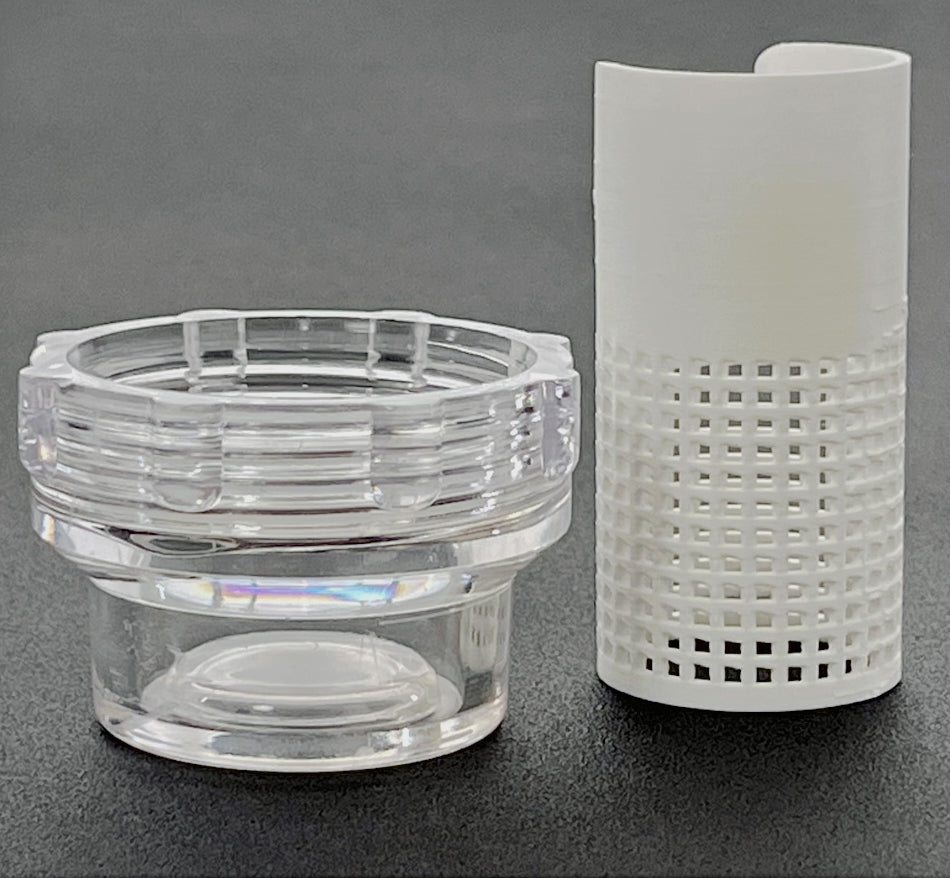

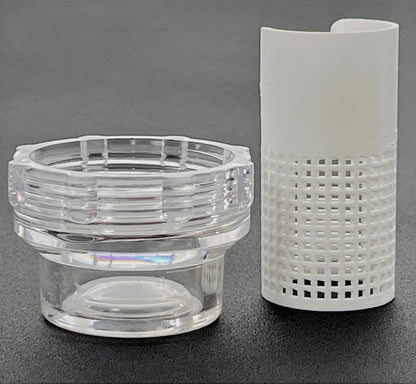

Inline screen to catch hair and larger debris before the chiller

Quick connect hoses

Barrel attachment components based on your selected kit

*This package is designed to provide the core components needed to start using the system with your own compatible Ice Barrel™. The Ice Barrel™ itself is not included.

Kit Selection Required

300 / 500 Kit – includes the required connection components for compatible 300 or 500 barrel setups

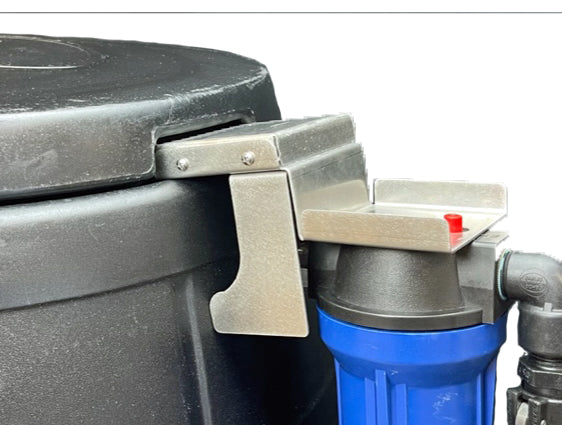

400 Kit – includes the barrel bracket for compatible 400 Ice Barrel™ setups, helping provide a secure fit without drilling

*Please select the correct kit option for your barrel setup before ordering.

Manufacturer Guidelines

Setup Notes

The pump is not self-priming. Your setup needs to gravity prime to the pump for proper operation.

Place the chiller within 3′ of the drain of your tub whenever possible.

The bottom of the chiller should be at the same height or lower than the bottom of your tub.

Do not elevate the chiller above the tub.

Proper fitment depends on selecting the correct 300 / 500 Kit or 400 Kit for your compatible Ice Barrel™ setup.

Outdoor Use

The Cold Therapy Chiller is designed for outdoor use in all weather conditions except freezing temperatures.

Disconnect and drain the chiller completely if ambient temperatures drop to freezing or below to prevent damage.

Operating Notes

Ambient temperatures, insulation, and sun exposure will affect performance. Reducing external heat load will help maintain colder water temperatures more consistently.

The pump should run continuously, and the filter should be kept clean for proper temperature monitoring and operation.

Condensation may occur depending on operating temperature and ambient humidity, so plan your installation accordingly.
